CS 184 Homework 3 Write-Up

Overview

In this assignment, we implemented a physically-based path tracer capable of generating realistic images by simulating the complex interactions of light with surfaces. We began with the fundamentals of ray generation and scene intersection, designing robust algorithms for ray-primitive tests that serve as the backbone of our rendering pipeline, and then accelerated these computations using a Bounding Volume Hierarchy. Moving on to direct illumination, we compared uniform hemisphere sampling with importance sampling—demonstrating that by focusing samples on light sources, the latter significantly reduces noise and improves convergence. We further expanded our system to support global illumination by incorporating multiple light bounces with unbiased path termination via Russian Roulette, and concluded by introducing adaptive sampling to intelligently allocate more samples to high-variance pixels. This project deepened our understanding of light transport simulation and underscored the importance of efficient algorithms in producing high-quality, noise-free renderings.

This write-up is published on https://mjkwak0184.github.io/cs184/hw3/.

Part 1. Ray Generation and Scene Intersection

In this part, we implemented the ray generation and scene intersection parts of the rendering pipeline. The ray generation process involves creating rays from the camera through each pixel of the image plane. More specifically, we sample points on the final image plane and generate rays from the camera through these points. For each pixel, we generate the camera ray by transforming the normalized image coordinates to camera space, generating the ray in camera space, and finally transforming it into a ray in world space. We use this world space ray to trace the path of light through the scene.

This method is important in primitive intersection, where we determine whether a ray intersects with primitive objects such as triangles and spheres in the scene. We implemented the ray-triangle intersection algorithm in the Triangle class and the ray-sphere intersection algorithm in the Sphere class. These intersection functions test whether there is an intersection between a primitive object and the input ray and report the location of the nearest intersection point.

For the ray-triangle intersection, we used the Moeller-Trumbore algorithm. This algorithm calculates the intersection point of a ray with a triangle by computing the barycentric coordinates of the intersection point. We then use these barycentric coordinates to interpolate the three vertex normals of the triangle to determine the surface normal at the intersection point. We return true only if the intersection occurs at t that lies within the min_t and max_t of the input ray and update max_t.

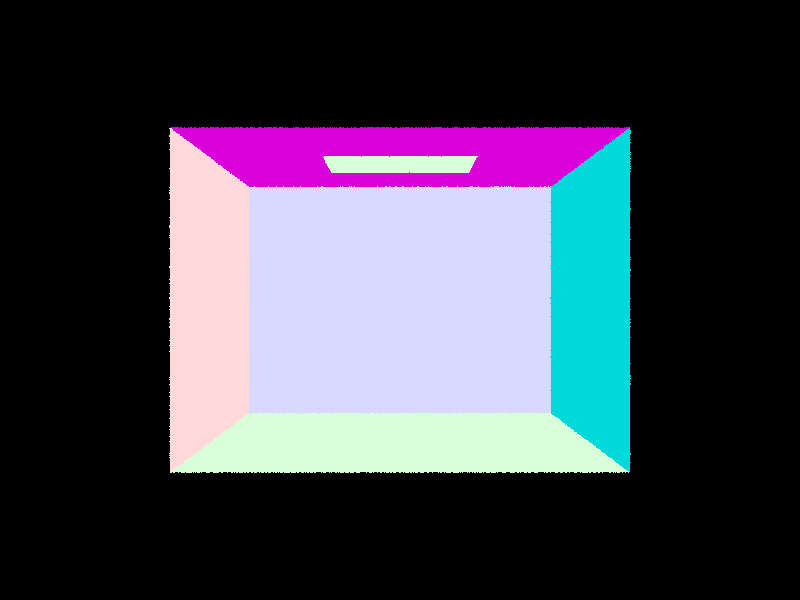

CBempty

Empty

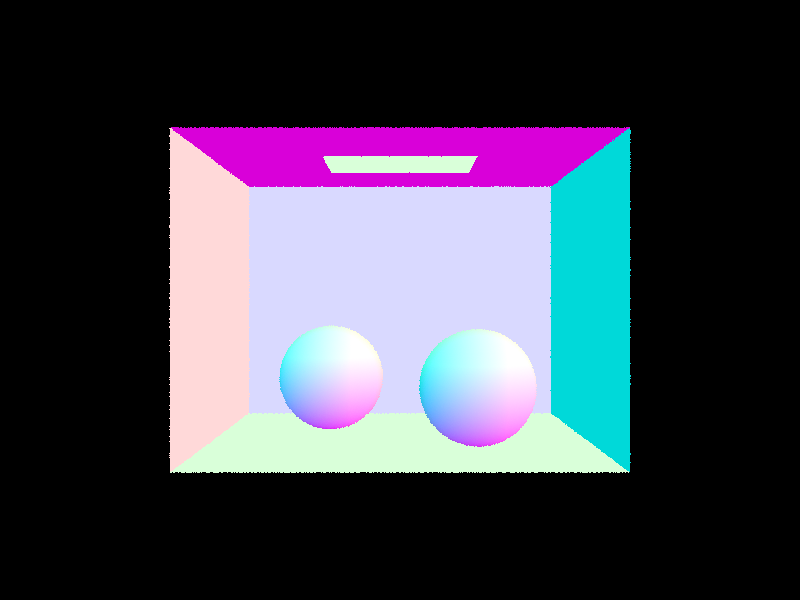

Spheres

Spheres

Teapot

Teapot

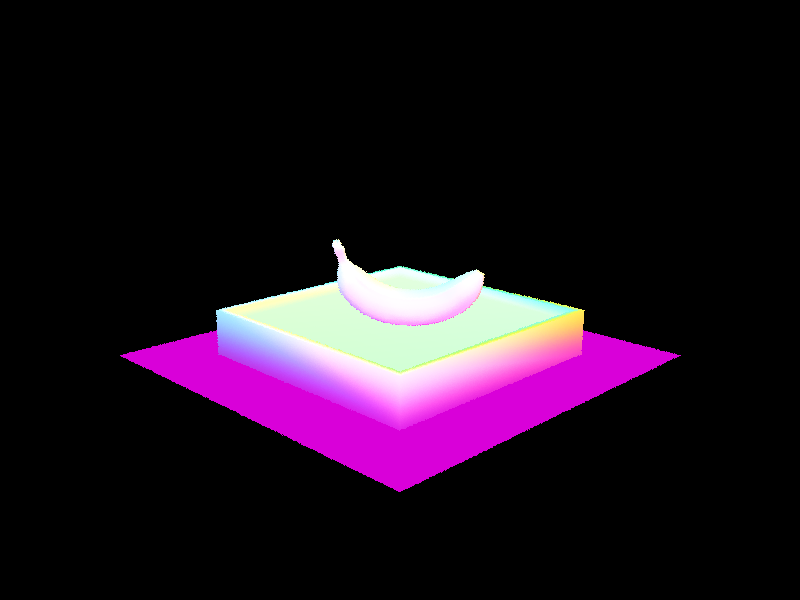

Banana

Banana

Part 2. Bounding Volume Hierarchy

In this part, we implemented a Bounding Volume Hierarchy (BVH) to speed up our path tracer and render large .dae files more efficiently. A BVH is a binary tree that allows us to traverse the scene and quickly discard collections of primitives that a particular ray is guaranteed not to intersect. The BVH construction algorithm recursively divides the primitives into a "left" and "right" collection based on the centroid of their bounding boxes. We chose the split point along the axis that gives us the most benefit, such as the midpoint of an axis or the average of centroids along an axis. We then set the current node's left and right children by recursively calling the BVH construction algorithm. More specifically, we computed the bounding box of a list of primitives and initialized a new BVHNode with that bounding box. If there are no more than a specified maximum leaf size of primitives in the list, the node we just created is a leaf node, and we update its start and end iterators appropriately. Otherwise, we divide the primitives into a "left" and "right" collection based on the centroid of their bounding boxes and set the current node's left and right children by recursively calling the BVH construction algorithm.

We also implemented the BVH intersection functions to test whether there is an intersection between the input ray and any primitives in the input BVH. The has_intersection function simply tests for intersection, while the intersect function not only tests for intersection but also reports the nearest intersection via the input Intersection structure. We used these functions as helper functions for each other to simplify our code. The BVH intersection functions recursively traverse the BVH tree and test the ray against every single primitive in the tree. Once these functions are complete, our path tracer became fast enough to render any of our scene files in a matter of seconds. Here are some of the results:

Max Planck

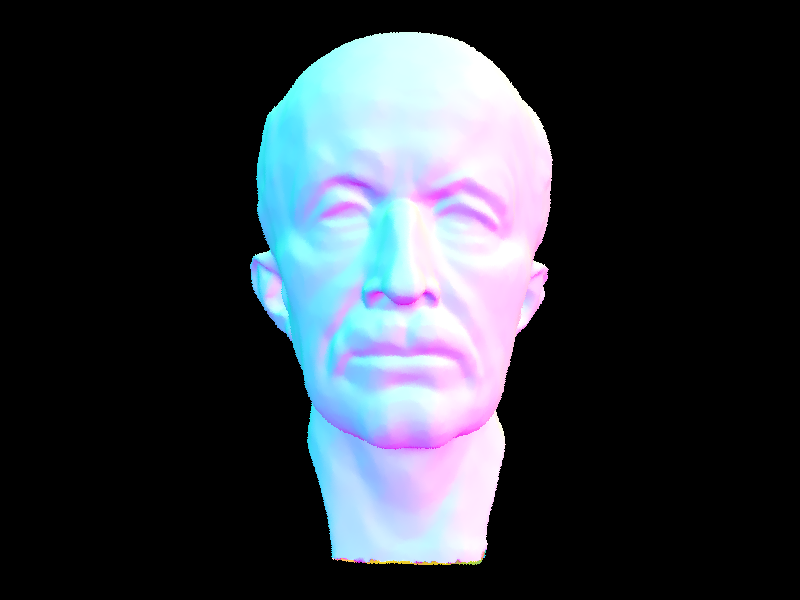

Max Planck (42.6551s -> 0.0727s)

Lucy

Lucy (161.2845s -> 0.0545s)

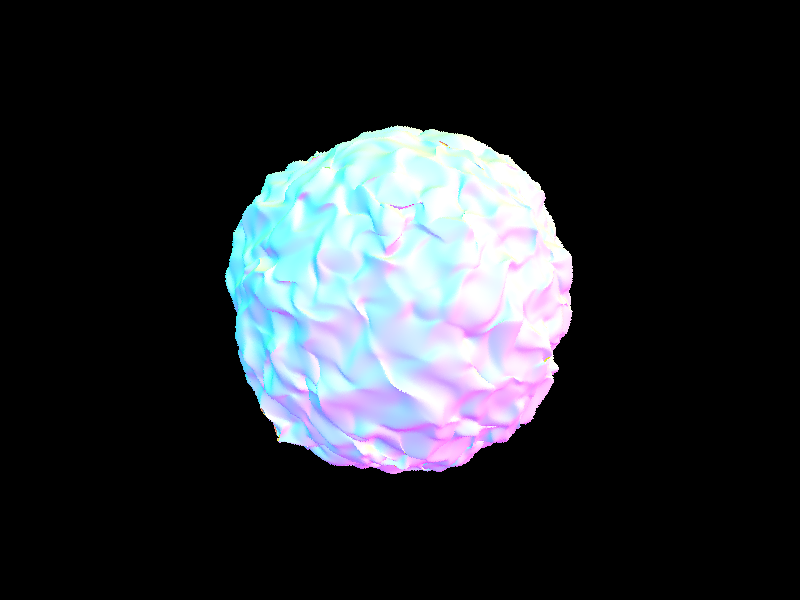

Blob

Blob (305.3402s -> 0.0740s)

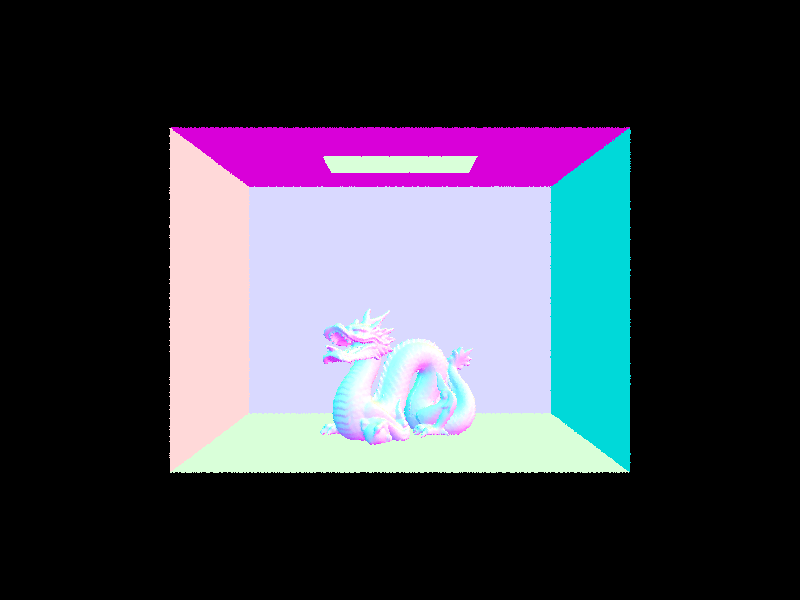

Dragon

Dragon (116.4050s -> 0.0540s)

By implementing a BVH, we were able to render large .dae files much more efficiently. For example, the Blob model took 305.3402 seconds to render without a BVH but only 0.0740 seconds with a BVH. Lastly, the Dragon model took 116.4050 seconds to render without a BVH but only 0.0540 seconds with a BVH. These results demonstrate the significant speedup that a BVH provides in rendering complex scenes.

Part 3. Direct Illumination

In this part, we implemented direct illumination in our path tracer to simulate light transport in the scene and render images with realistic shading. To that end, we first added zero bounce illumination, which refers to light that reaches the camera without bouncing off anything in the scene. The zero_bounce_radiance function works by returning the emission of the object that was intersected. Then we updated one_bounce_radiance, which returns the direct illumination by hemisphere or importance sampling depending on the direct_hemisphere_sample flag. These zero and one bounce radiance functions are then used in the est_radiance_global_illumination function to return the direct illumination.

For hemisphere sampling, the estimate_direct_lighting_hemisphere function estimates the lighting from an intersection by sampling uniformly in a hemisphere. We used this function to estimate how much light arrived at the intersection point from elsewhere and calculate how much outgoing light there is.

The results from hemisphere sampling does converge, but they are quite noisy. To improve this, we implemented importance sampling in the estimate_direct_lighting_importance function. In our implementation within this function, we sample only the directions that point toward each light source. For every light, we generate a ray from the hit point toward the light and evaluate its contribution using the material's BSDF, the cosine term (which accounts for the angle between the surface normal and the light direction), and the probability density function associated with the light sampling. If the ray reaches the light without being blocked (indicating that the point is not in shadow), its contribution is accumulated into the final lighting estimate. This approach reduces noise and improves convergence because it allocates more samples to the most relevant parts of the scene.

CBbunny_H_16_8

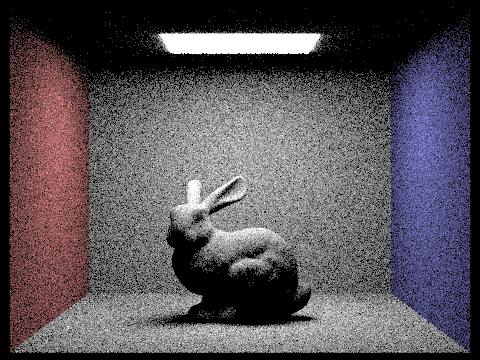

Hemisphere Bunny 16/8

CBbunny_H_64_32

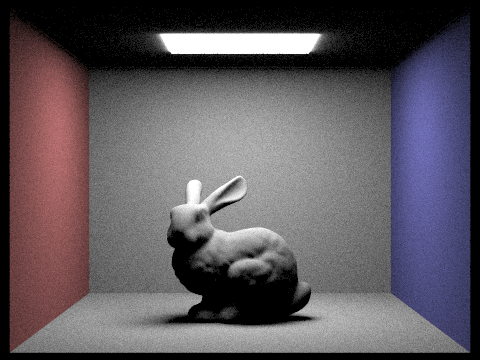

Hemisphere Bunny 64/32

Bunny drawn using hemisphere sampling with 16 samples per pixel and 8 samples per light (left) and 64 samples per pixel and 32 samples per light (right).
bunny_1_1

Imporatnce Bunny 1/1

bunny_64_32

Importance Bunny 64/32

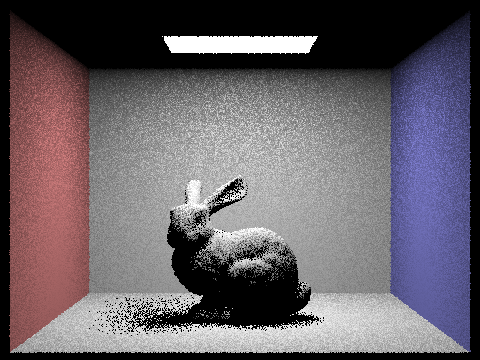

Bunny drawn using importance sampling with 1 sample per pixel and 1 sample per light (left) and 64 samples per pixel and 32 samples per light (right).
Notice how the importance sampling results in less noise and more accurate soft shadows compared to hemisphere sampling.

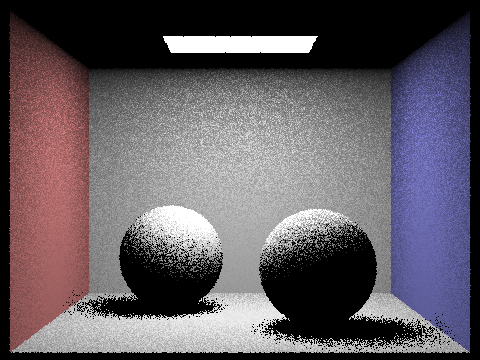

CBspheres_1_1

Importance Spheres 1 light ray

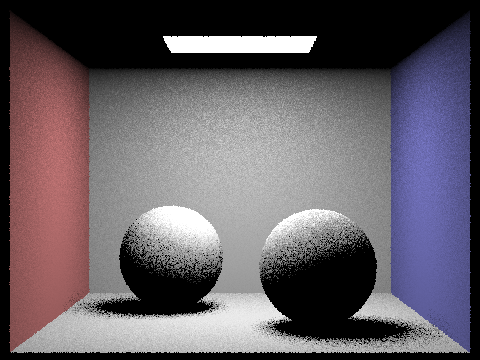

CBspheres_4_1

Importance Spheres 4 light rays

CBspheres_16_1

Importance Spheres 16 light rays

CBspheres_64_1

Importance Spheres 64 light rays

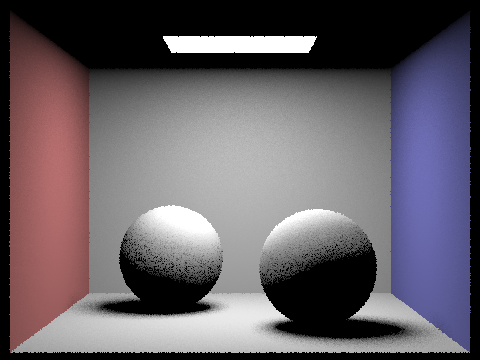

Spheres drawn using importance sampling with 1, 4, 16, and 64 light rays. As the number of light rays increases, the noise in the image decreases.

To test our results, we rendered the bunny scene with different sample rates. The images above show the bunny scene rendered using hemisphere and importance sampling at different sample rates. Looking at the results, we can see that importance sampling produces less noise and more accurate soft shadows compared to hemisphere sampling. The walls in the render using hemisphere sampling are speckly, whereas they are perfectly smooth in the render using importance sampling. This difference is due to the inherent randomness in hemisphere sampling, which can lead to higher variance in the calculated light levels between adjacent pixels. In contrast, light sampling only casts rays toward light sources, resulting in a smoother blend of lighting as we move our eyes across the wall. This also explains why the hemisphere-sampled images look darker overall, as not every sample contributes direct light. In contrast, importance sampling directs rays toward the light sources, guaranteeing that each sample has a high probability of gathering meaningful light information. As a result, the images rendered with importance sampling are much smoother and brighter, with less variation across adjacent pixels. Another notable discrepancy is the halo that appears around the sides of the area light in the hemisphere-sampled render, which does not manifest in the importance-sampled version. By focusing sampling on the areas that contribute the most to the final illumination, importance sampling produces more accurate, noise-free results even with fewer total samples.

Part 4. Global Illumination

For indirect lighting, we implemented at_least_one_bounce_radiance, which recursively traces light paths to capture global illumination. First, we transform the ray’s direction into the local coordinate frame of the intersected surface and initialize the outgoing radiance (L_out). If isAccumBounces is enabled, or if the current bounce is the final one, we add direct illumination from one_bounce_radiance to L_out. If the ray’s depth is greater than 1, we sample an incoming direction (wi) using the BSDF’s sample_f function, ensuring that reflections follow a cosine-weighted hemisphere distribution. We then compute the probability density function (pdf) and verify that wi contributes valid radiance. If the sampled direction has a valid cosine weight, we create a new ray originating slightly off the surface (to avoid self-intersection) and trace it recursively. To account for energy conservation, we divide by pdf and scale by the cosine term. If Russian Roulette termination is applied, the recursion randomly stops early based on a probability threshold, and we adjust the weight of the remaining paths accordingly. This ensures that longer paths are sampled correctly without introducing bias while improving efficiency. Finally, L_out accumulates all contributions, resulting in a more realistic rendering of indirect light.

bunnys

bunny

wall-e

wall-e

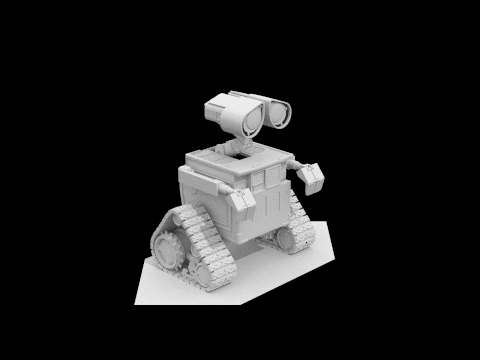

examples of using global illumination for the bunny and wall-e scenes.

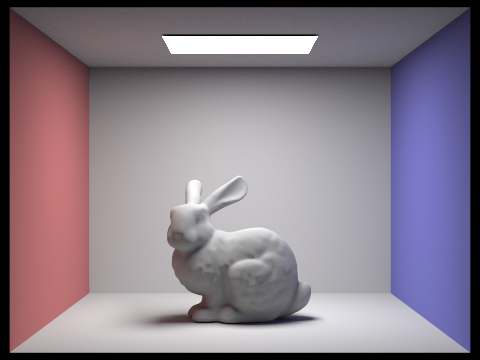

in the image with direct lighting, the bunny is illuminated by a single light source, resulting in a flat, shadowless appearance. In contrast, the image with indirect lighting shows the bunny illuminated by multiple light sources, creating soft shadows and more realistic lighting.

bunnys

direct bunny

wall-e

indirect bunny

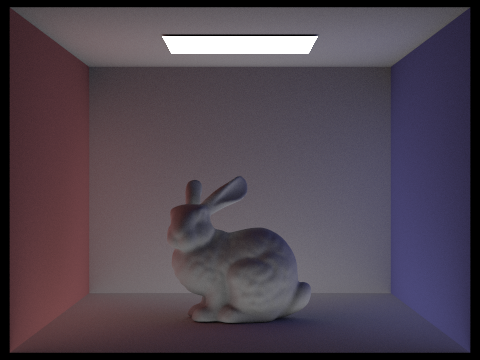

bunny scene rendered with direct lighting (left) and indirect lighting (right).

The 2nd bounce reveals initial soft indirect lighting and subtle shadows while the 3rd bounce further diffuses light to enhance global illumination detail, emphasizes on shadows. Together, they yield a more naturally lit (however, with 3rd bounce alone, it is darker of course) and depth-rich image compared to the flat, direct lighting typical of rasterization.

bunnys

false 0 bunny

bunnys

false 1 bunny

bunnys

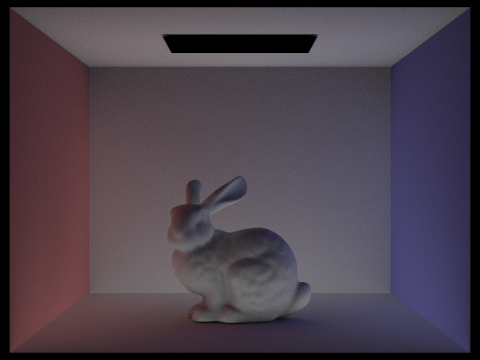

false 2 bunny

bunnys

false 3 bunny

bunnys

false 4 bunny

bunnys

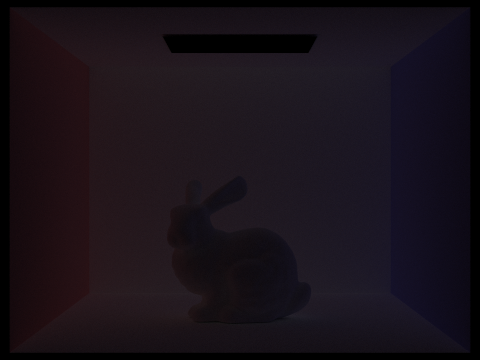

false 5 bunny

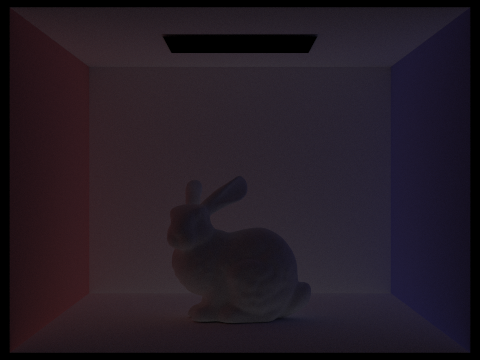

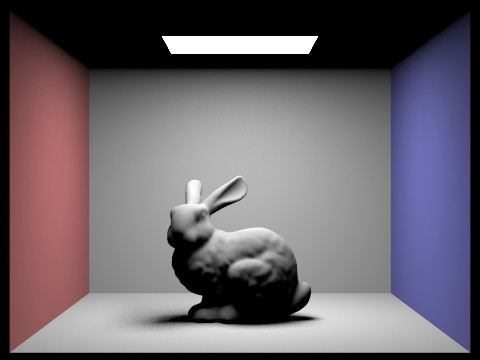

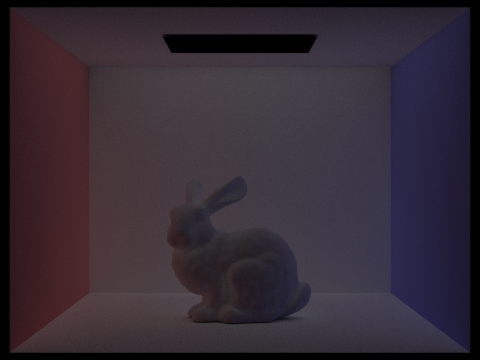

rendered bunny scene with 0, 1, 2, 3, 4, and 5 bounces with isAccumBounces disabled.

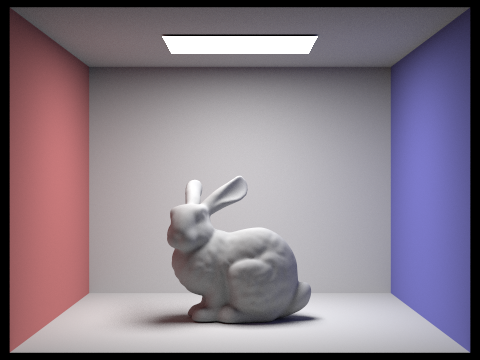

In comparison, by enabling aisAccumBounces, the 2nd and 3rd bounce produce very similar results, except for the 3rd bounce being slightly brighter. This is because the 3rd bounce is not as dark as the 2nd bounce, as it has more light paths to sample from. The 4th bounce is even brighter, with more light paths to sample from.

bunnys

true 0 bunny

bunnys

true 1 bunny

bunnys

true 2 bunny

bunnys

true 3 bunny

bunnys

true 4 bunny

bunnys

true 5 bunny

rendered bunny scene with 0, 1, 2, 3, 4, and 5 bounces with isAccumBounces enabled.
bunnys

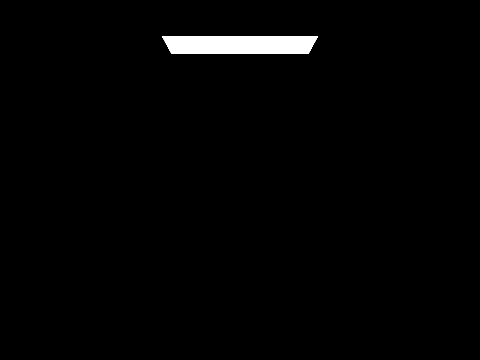

bunny 0

bunnys

bunny 1

bunnys

bunny 2

bunnys

bunny 3

bunnys

bunny 4

bunnys

bunny 100

The bunny scene rendered with 0, 1, 2, 3, 4, and 100 bounces with russian roulette termination enabled. As the number of bounces increases, the image becomes brighter and more detailed.

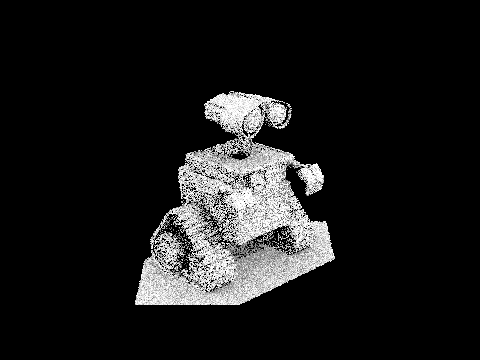

walle1

wall-e 1

walle2

wall-e 2

walle4

wall-e 4

walle8

wall-e 8

walle16

wall-e 16

walle64

wall-e 64

walle1024

wall-e 1024

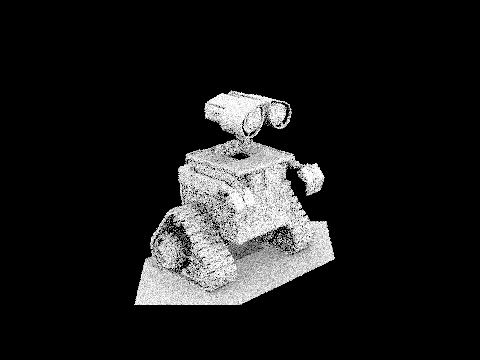

The wall-e scene rendered with 1, 2, 4, 8, 16, 64, and 1024 bounces. As the number of bounces increases, the image becomes brighter and more detailed.

Part 5. Adaptive Sampling

Adaptive sampling helps reduce noise in rendered images by focusing more samples on difficult areas while stopping early in areas that converge quickly. Instead of using a fixed number of samples per pixel, we implemented a loop that checks pixel convergence every samplesPerBatch iterations. For each sample, we traced a ray through the scene, estimated its radiance, and updated running sums for the mean and variance of illuminance. After every batch, we computed a confidence interval to see if the pixel had stabilized—if it had, we stopped sampling early. This approach improves efficiency by reducing unnecessary computations while maintaining image quality. Finally, we stored the total number of samples per pixel to visualize the sampling rate across the image.

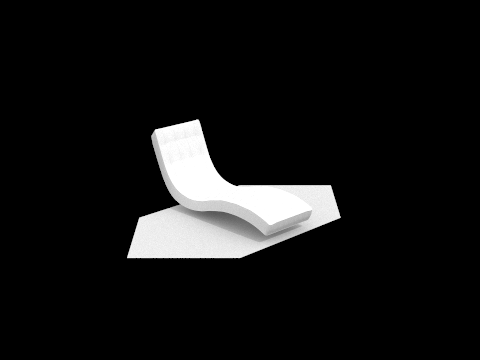

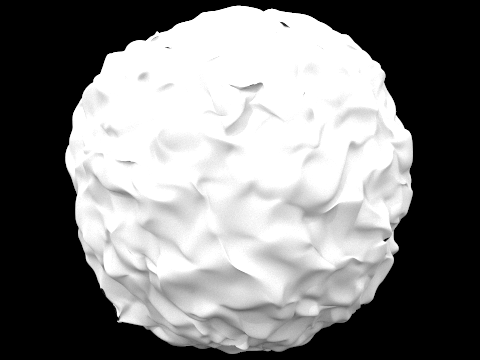

Here are two images rendered with adaptive sampling: We present the sampling rate image and the final rendered image side by side.

Bench

Bench

Bench

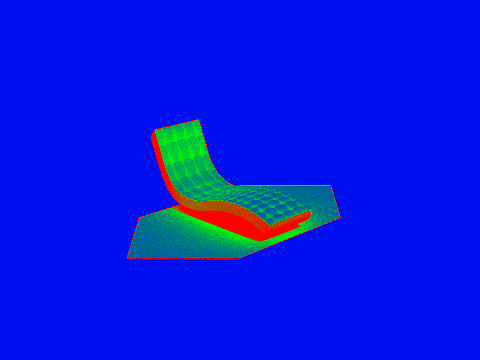

Bench sampling rate

Blob

Blob

Blob

Blob sampling rate
